Unitronic AWD Downpipe for 1.8/2.0 TSI Gen 3

Go Back
Unitronic AWD Downpipe for 1.8/2.0 TSI Gen 3 Unitronic AWD Downpipe for 1.8/2.0 TSI Gen 3 Unitronic AWD Downpipe for 1.8/2.0 TSI Gen 3 Unitronic AWD Downpipe for 1.8/2.0 TSI Gen 3

Product Information

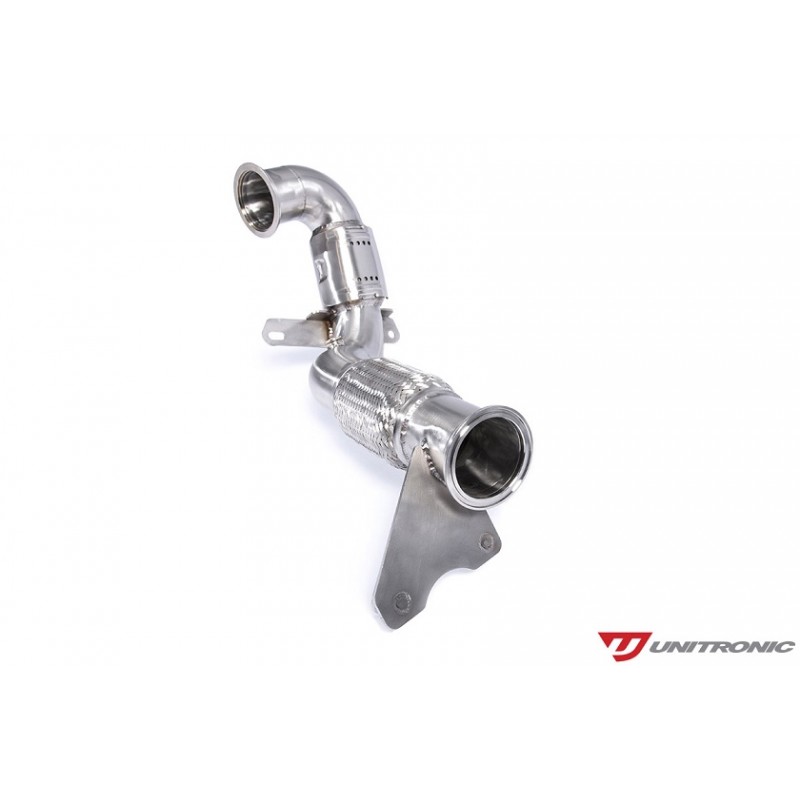

Constructed of 3" T304 stainless steel mandrel bent tubing, T316 stainless steel flanges, a corrugated stainless steel flex section, and TIG welded fabrication, this downpipe is built to withstand the test of time, while performing to the max. All Unitronic downpipes come equipped with a 200-cell high flow metallic catalytic converter and all transitions are flow-matched to allow for maximum performance and airflow. In addition, Unitronic exhausts feature an easy-to-use v-band exhaust fastening system to ensure a fast and effortless installation and precise fitment. To finish it off, an OEM-inspired catalytic converter heat-sheild protects against unwanted heat radiating in the exhaust tunnel. Every Unitronic Exhaust System comes equipped with a brushed matte finish for an elegant appearance that will last a lifetime. There's simply nothing like it!

Features / Benefits

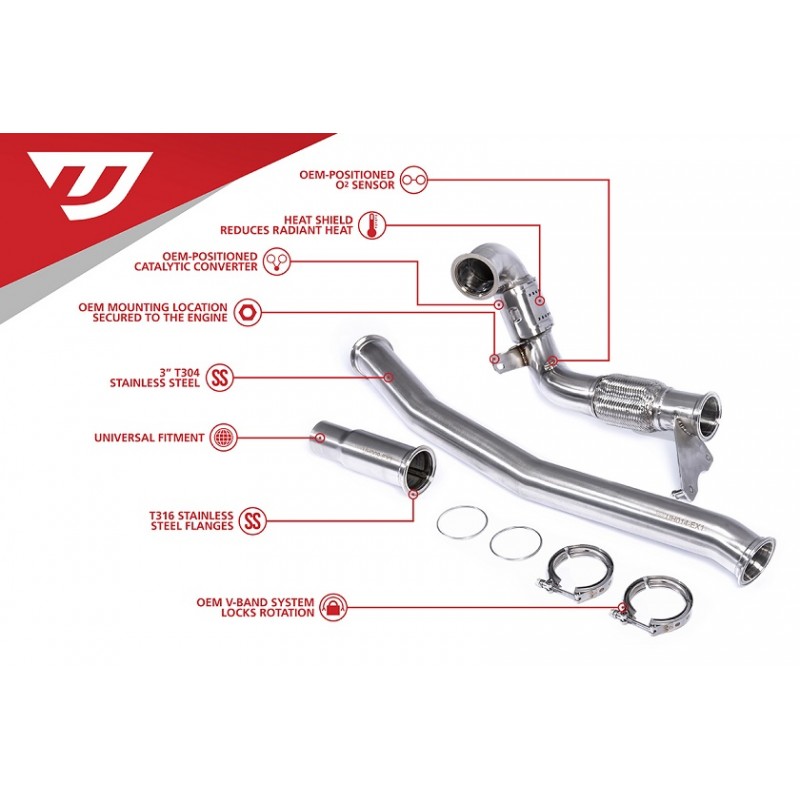

  • Direct Bolt-On Fitment with OEM mounting locations:
    To ensure a seamless direct bolt-on upgrade
  • Smooth 80mm to 76.2mm turbo to downpipe transition:
    Assure a smooth flow transition between Turbine housing and 3” Stainless steel piping.
  • Factory position 200-cell metallic matrix high-flow catalyst:
    For maximum efficiency.
  • OEM Oxygen Sensor Placement:
    No need for O2 sensor extension or modification of the wiring harness.

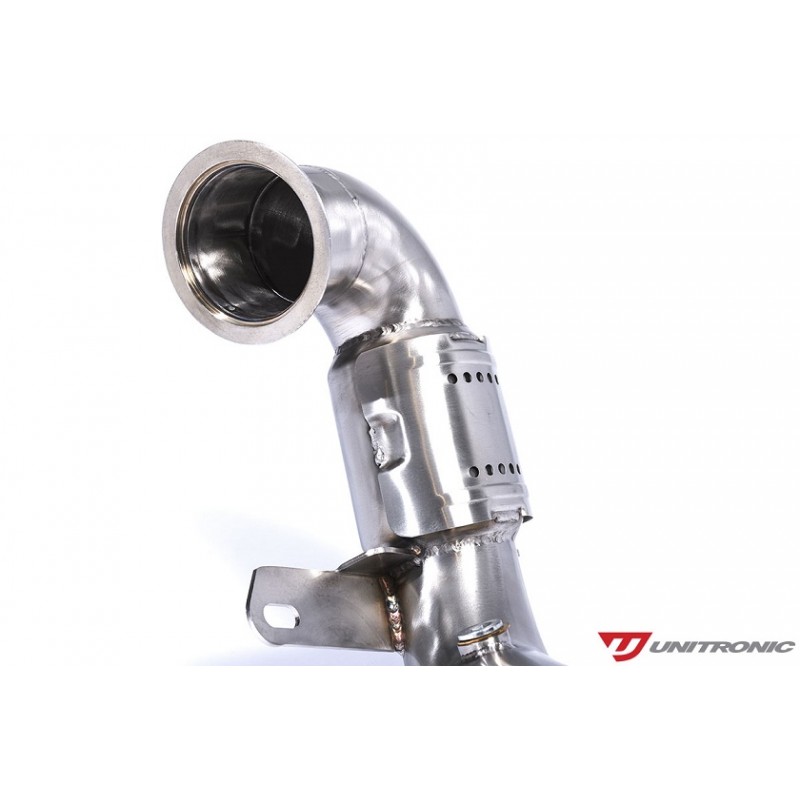

  • OEM-inspired catalytic converter heat shield:
    To reduce radiant heat.
  • 3-inch T304 Stainless Steel Tubing:
    Top quality material that will not rust and will outlast your vehicle.
  • T316 Stainless Steel Flanges:
    Durable, rust proof and laser cut.
  • TIG Welded Construction:
    Professionally TIG welded to ensure longevity, durability and top tier craftsmanship.
  • 4-inch Corrugated Stainless Steel Flex Section:
    High quality flex with inner interlock that will stay leak proof for years. It allows engine movement without stressing the factory rubber mounts.
  • Unique V-Band Fastening System Featuring Clampco® clamps:
    Maintain a perfect alignment of v-band flanges while ensuring a leak-proof connection every time. Fully reusable and quick to install.
  • Universal Fitment:
    Comes with OEM size reducer for a direct bolt-on. Optional 3” adapter available for any after market exhaust system or 3” slip fit adjustable link to match to any Unitronic exhaust system.
  • Unitronic Life Time Warranty:
    Unitronic Performance Hardware Products carry a Limited Lifetime Warranty



Hardware Included
  • Unitronic 3" Catatlytic Converter Section
  • Unitronic 3" Downpipe Section
  • Unitronic 3" V-Band Exhaust Clamps
  • 3" V-Band Adapter
  • Unitronic 3" V-Band Sealing Rings
  • All Necessary Hardware Included



Required Software



Install
Featuring a unique v-band fastening system and engineered using the latest in 3D modeling technology, Unitronic Performance Exhaust Systems are made easy to install.



Brand: Unitronic
Product Code: UH027-EXA
$959.99
