Unitronic Turbo Back Exhaust for S6
Product Information
Unitronic is pleased to present its 2.5” Turbo-Back Exhaust System for the C7/C7.5 Audi® S6®. Featuring TIG welded T304 Stainless Steel CNC mandrel bent construction, stainless steel corrugated flex section, high flow 200-cell metallic catalytic converter, and a free flowing design; Unitronic’s Turbo-Back Exhaust Systems are designed to remove the factory exhaust restrictions to unleash the full potential of the engine.
Like all of Unitronic’s Performance Exhaust Systems, a unique v-band fastener system, using T316 Stainless Steel flanges was utilized to ensure a leak proof connection every time. This is achieved through a locking ring on all Unitronic v-band flanges to guarantee a centric alignment of the two flanges. Unitronic’s mufflers feature a high density, high temperature glass fiber packing and are stamped with the Unitronic logo. These attributes combined ensure maximum performance, while maintaining a comfortable and unobtrusive tone inside the cabin. Exiting at the rear, exhaust gasses pass through dual 3” slash cut tips and engraved with the Unitronic logo.
Features / Benefits
-
T304 Stainless Steel Mandrel Bent Tubing
-
Direct bolt-on fitment with OEM mounting locations
-
2.5-inch T304 stainless steel tubing
-
T316 stainless steel flanges
-
200-cell metallic matrix high-flow catalyst
-
Factory catalyst position for maximum efficiency
-
OEM-inspired catalytic converter heat shield to reduce radiant heat
-
Proper Oxygen sensor placement
-
Corrugated stainless steel flex section
-
TIG welded construction
-
Unique v-band fastening system featuring Clampco® clamps
-
Straight-through, free flowing muffler design
-
Polished 3-inch double wall slash cut exhaust tips w/ engraved Unitronic logo

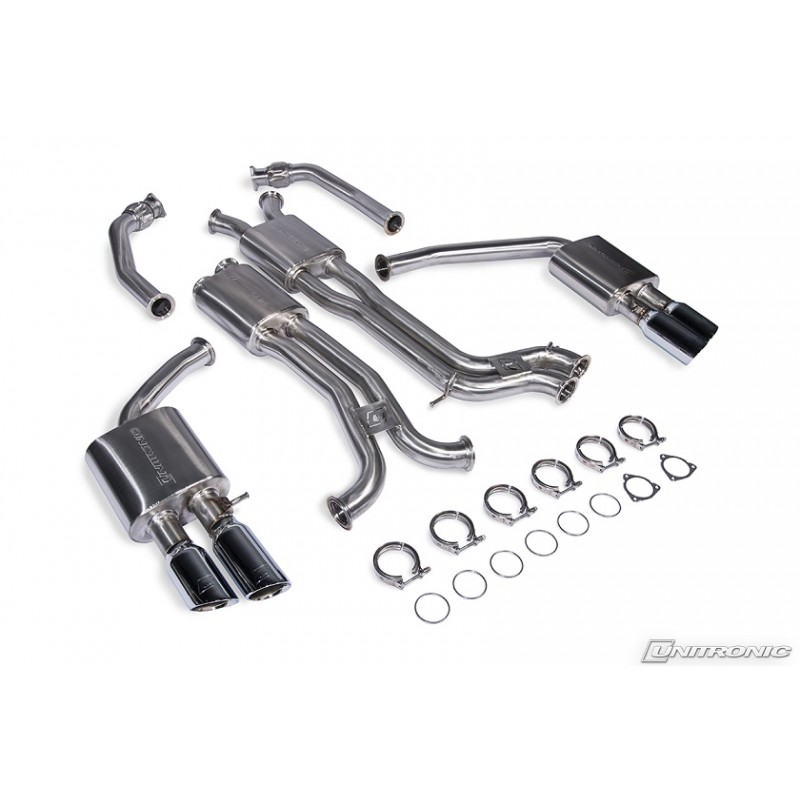

Hardware Included
-
Unitronic 2.5" Catalytic Converters
-

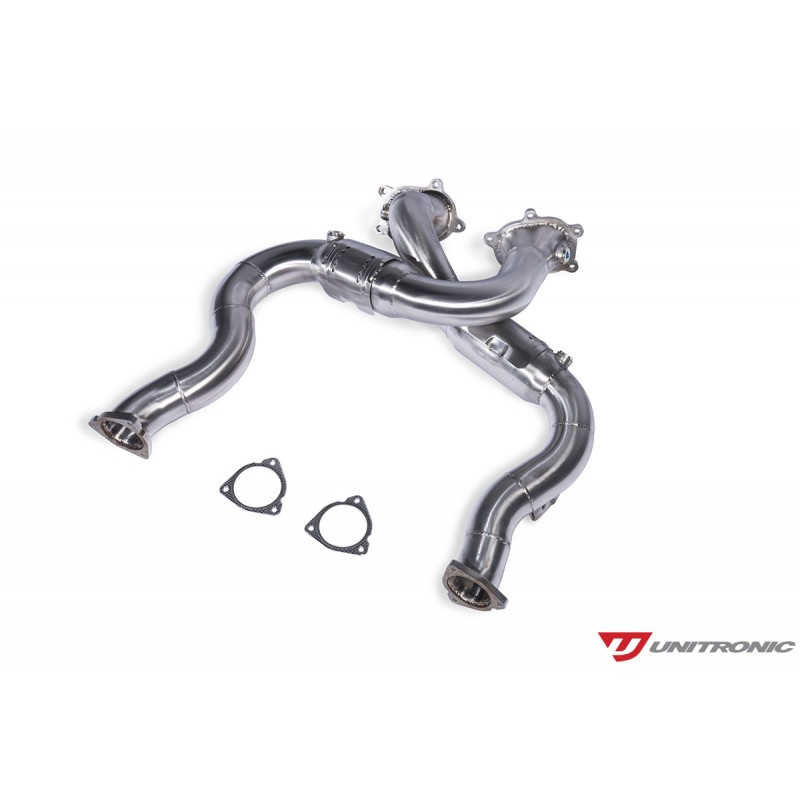

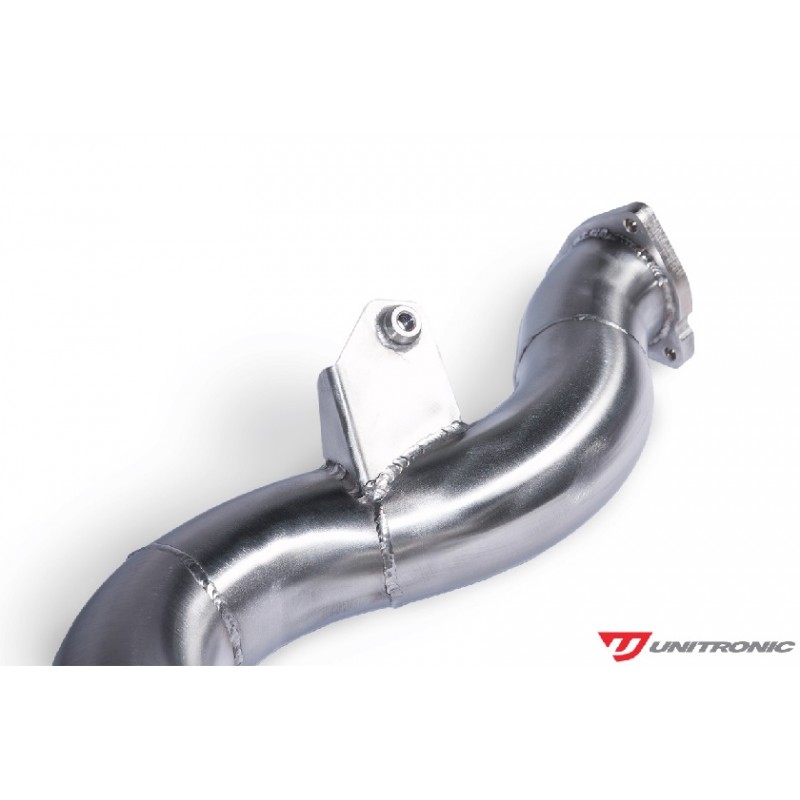

Unitronic 2.5" Downpipes
-
Unitronic 2.5" Front-Pipe w/ Resonator
-
Unitronic 2.5" Mid-Pipe w/ Resonator
-
Unitronic 2.5" Rear Sections w/ Muffler
-
Unitronic 2.5" V-Band Exhaust Clamps
-
Unitronic 2.5" V-Band Sealing Rings
-
All Necessary Hardware Included
Required Software
-
Untronic Stage 2 Performance Software with DTC/Code patch for no exhaust flaps
Install
Featuring a unique v-band fastening system and engineered using the latest in 3D modeling technology, Unitronic Performance Exhaust Systems are made easy to install.
